Results



    The light tracker was able to track bright light source quite well and generally could move to face the light source within a second. Initially, I had some trouble with one of the light sensors due to a bad internal contact, but once I replaced it everything worked well. The servo operation in the light tracker was very smooth, but there was some slight hesitation in the movement when a light source was suddenly applied. This was most likely due the integral term since its calculation depends on many previous error values and would be slow to respond to a sudden change in lighting conditions. The light tracker did have some difficultly following a light source when there were other lights in the room that were pointed at the light sensors. This difficulty could be mitigated by changing the orientation of the light sensor so that the room lights did not shine directly into either light sensor. The ability to use the STK 500ís buttons to change the weightings on the PID equation worked well to fine tune the light trackerís movement and to demonstrate the kinds of improper behavior that should be avoided. For example, if one were to slowly raise the Ďgainí term in the PID equation, the light tracker would initially move faster to track the light source. However, if the gain term was too high, then the light tracker would begin overshooting the light source and oscillate around the source indefinitely.

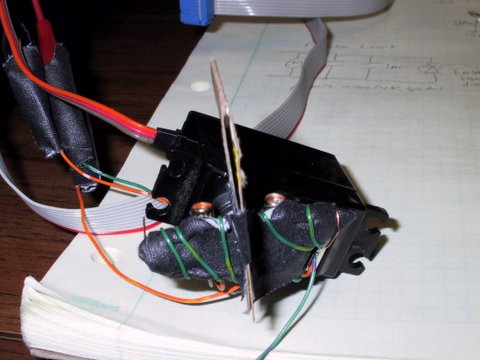

    The only part of the light tracker that was intended for the user to manipulate was the servo motor with the light sensors attached and the STK 500ís buttons. To ensure safety in the design, I wrapped all leads connected to the servo motor in electrical tape to make sure the user didnít touch them and that the leads would not touch each other. Overall, the light tracker is very easy to use as the setup is minimal and the preset PID weights are set so that the tracker will reliable follow a light source when the MCUís power is turned on.
