Space Shooter
Group Members
Hardik Hedaoo (hgh36)
Mahathi Andavolu (ma2339)
Koushani Das (kd496)
Lianzhi Zhu (lz566)
Introduction
This project involves the development of a real-time game called "Space Shooter" on the DE1-SoC FPGA platform, utilizing the ARM/FPGA capabilities of the system. "Space Shooter" leverages memory-mapped I/O for graphical output on a VGA display and direct interaction with hardware components for responsive gameplay. Players control a spaceship using keyboard inputs to move and shoot bullets at on-screen enemies, with the game tracking player scores and collision detection in real-time. The implementation emphasizes efficient use of hardware resources, precise timing for smooth animation, and effective collision detection algorithms to ensure engaging and dynamic gameplay. This report details the design, implementation, and testing phases of the project, highlighting the challenges encountered and solutions developed to achieve the desired performance and functionality.

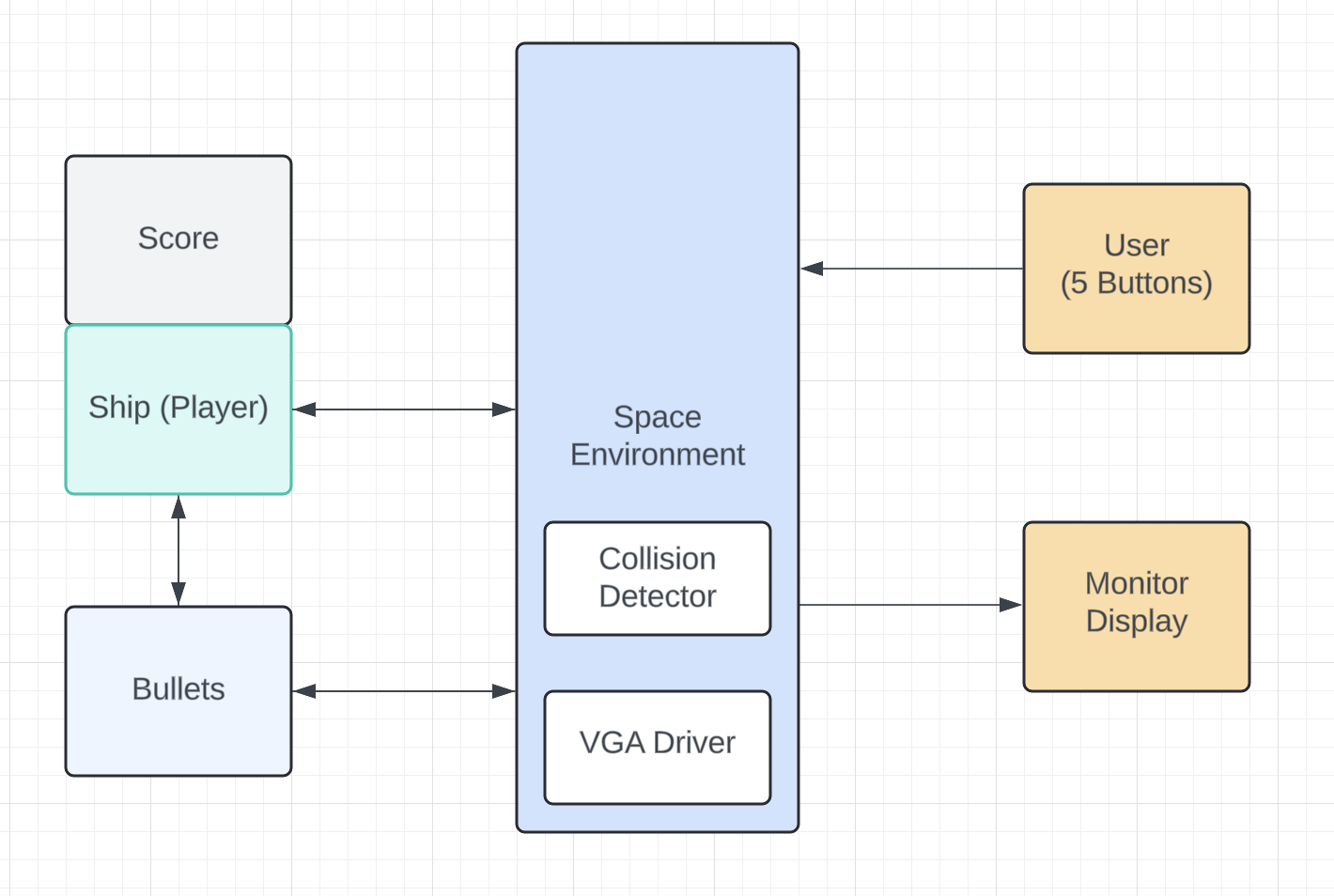

Figure 1. Block Diagram of Space Shooter.
Mathematical Background
The "Space Shooter" project involves several mathematical concepts and techniques that are essential for its development and functionality. Here are the key mathematical elements involved:
- Coordinate Geometry:
- Screen Coordinates: The game screen is defined by a coordinate system where the top-left corner is (0,0), the x-axis increases to the right, and the y-axis increases downwards. The player and enemies' positions are tracked using (x, y) coordinates.
- Movement: The player's spaceship and bullets are moved by updating their (x, y) coordinates. For example, pressing 'a' decreases the x-coordinate of the spaceship, moving it left.
- Collision Detection:
- Bounding Box Collision: Collision detection between bullets and enemies is based on axis-aligned bounding box (AABB) collision detection. The algorithm checks if the bounding boxes of two objects overlap.
- For a bullet to hit an enemy, the following conditions must be true:
- bullet.x ≤ enemy.x + enemy.size
- bullet.x + bullet.size ≥ enemy.x
- bullet.y ≤ enemy.y + enemy.size
- bullet.y + bullet.size ≥ enemy.y
- Vector Mathematics:
- Direction and Speed: The movement of bullets involves updating their y-coordinate by a fixed amount, simulating motion. This can be expressed as a vector addition:
bullet.y = bullet.y − BULLET_SPEED
This formula ensures the bullet moves upwards at a constant speed. - Timing and Delays:
- Frame Rate Control: The game loop includes a delay to control the frame rate, ensuring smooth animations and gameplay. The delay is set using `usleep`:
usleep(100000)
This provides a delay of 100 milliseconds, achieving a frame rate of approximately 10 frames per second. - Geometric Transformations:
- Scaling and Translation: Enemy positions are scaled and translated to create varying movement patterns. For instance:
enemies[i].px = *(enemy_pos_x_ptr) + 20 × i
This formula adjusts the x-position of each enemy to create spacing between them. Further transformations involve conditions that modify their positions for more complex movement. - Circular Geometry:

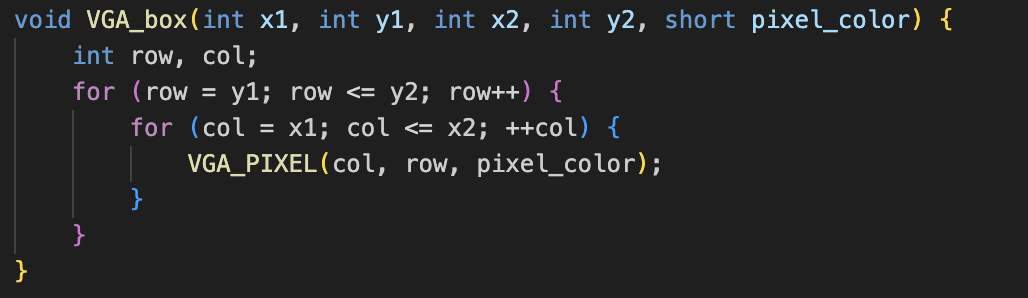

- Drawing Circles: The `VGA_disc` function uses the equation of a circle to draw enemies and player bullets. For a circle centered at (x, y) with radius r, all points (px, py) that satisfy:
(px − x)^2 + (py − y)^2 ≤ r^2
are part of the circle. - Scoring and Time Tracking:
- Score Calculation: The player's score increases by 100 points for each enemy hit, implemented as:
score += 100 - Time Measurement: The time elapsed since the start of the game is calculated using the `gettimeofday` function, which provides the current time in seconds and microseconds. The time used is given by:
time_used = end.tv_sec − start.tv_sec
Summary: The "Space Shooter" game combines these mathematical principles to create an engaging and dynamic gaming experience. From coordinate geometry and vector mathematics for movement and collision detection to timing control for smooth animations, these mathematical concepts form the backbone of the game's implementation.
Figure 2. Path followed by the enemies
RTL Design

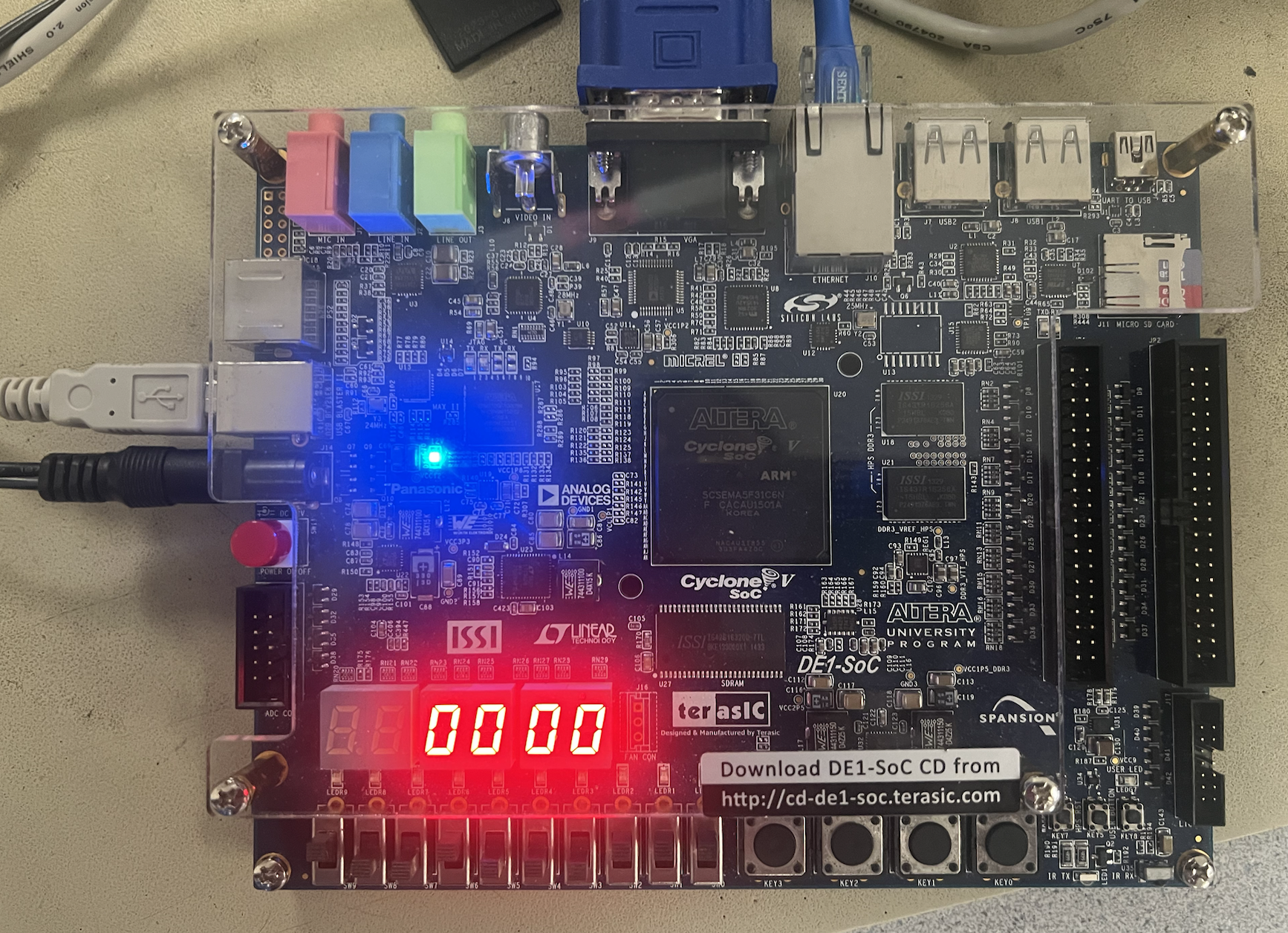

Figure 3. FPGA Board
The RTL design for Space Shooter includes the VGA controller for rendering graphics, player and enemy positioning, collision detection, and scoring. The design emphasizes efficient pixel drawing using parallel processing, real-time updates with combinational logic, and memory-mapped I/O for interaction with hardware components.
VGA Controller
The first step in our design was to implement the VGA controller, a crucial component for rendering the game's graphics on the screen. This controller generates the necessary synchronization signals and manages pixel color data based on the current game state.
VGA Pixel Drawing
To ensure efficient pixel drawing, we utilized parallel processing wherever possible. The VGA controller takes the coordinates and color information and outputs the correct pixel data to the screen. By processing multiple pixels in parallel, we reduced the critical path and avoided overflow issues that could occur with serial processing. This parallel approach ensures smooth and flicker-free graphics rendering.
Coordinate and Color Calculation
The VGA controller uses combinational logic to calculate the color of each pixel based on the game objects' positions and states. We employed fixed-point arithmetic with a precision of 1.17 to maintain a high level of accuracy without excessive resource usage. This precision is sufficient for the graphical requirements of the game and ensures that each pixel's color is computed accurately.
Figure 4. Coordinate and Color Calculation
Player and Enemy Positioning
Position Update Logic
The player and enemies' positions are updated using combinational logic that takes the current position, velocity, and input signals. This approach allows for real-time updates and immediate feedback to user inputs. For example, the player's position is adjusted based on keyboard inputs, and enemies' positions are updated based on predefined movement patterns.
Boundary Conditions
To handle boundary conditions, such as the player or enemies moving off-screen, we implemented checks within the position update logic. If an object reaches the edge of the screen, its position is constrained to stay within the visible area. This ensures that all game objects remain within the playable area and interact correctly with other objects.
Collision Detection and Scoring
Collision Logic
Collision detection is performed using bounding box calculations, which check for overlaps between the player, enemies, and bullets. This combinational module computes whether any two bounding boxes intersect, indicating a collision. By implementing this logic in parallel for multiple objects, we achieved efficient and timely collision detection without a significant increase in the critical path.
Scoring System
The scoring system is tightly integrated with the collision detection logic. Whenever a bullet collides with an enemy, the enemy is marked as inactive, the bullet is deactivated, and the player's score is incremented. The score update is handled using combinational logic, ensuring that the score is updated immediately upon a collision.
Memory Mapping and Input Handling
Memory-Mapped I/O

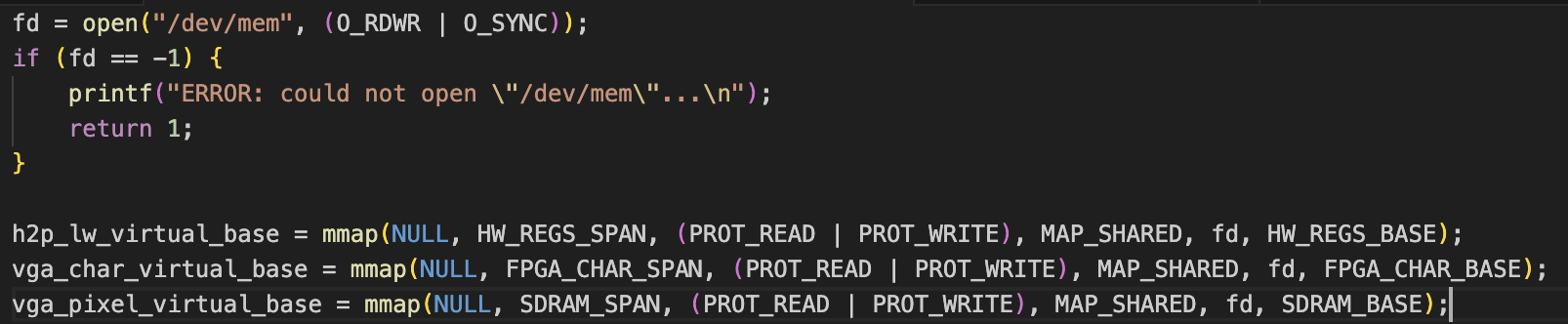

Memory mapping is crucial for interfacing with the FPGA's hardware components. The VGA character and pixel buffers, as well as enemy position registers, are mapped into the HPS address space. This allows the software to read and write directly to these hardware components using standard memory instructions.
Keyboard Input

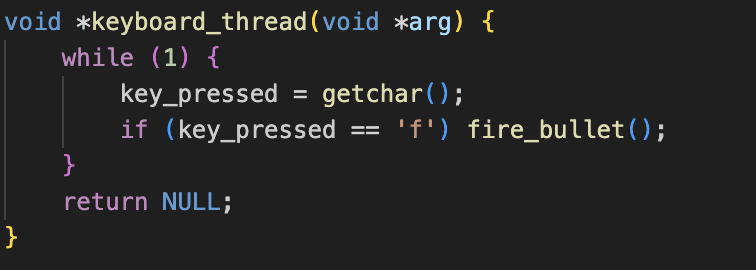

Keyboard input is handled using a separate thread, allowing the main game loop to run uninterrupted. The keyboard thread reads inputs in non-canonical mode, providing immediate feedback to the player's actions. This approach ensures a responsive gaming experience, as the player's inputs are processed in real time.
Main Game Loop
The main game loop integrates all the components described above, managing the overall game state and coordinating the interactions between the player, enemies, bullets, and the VGA controller. The game loop updates the player and enemy positions, checks for collisions, updates the score, and renders the updated game state to the screen.
Synchronization and Timing
To maintain a consistent frame rate and ensure smooth gameplay, the game loop includes a delay mechanism. By measuring the time taken for each iteration and adjusting the delay accordingly, we achieved a consistent frame rate. This approach ensures that the game runs smoothly, providing a seamless experience for the player.

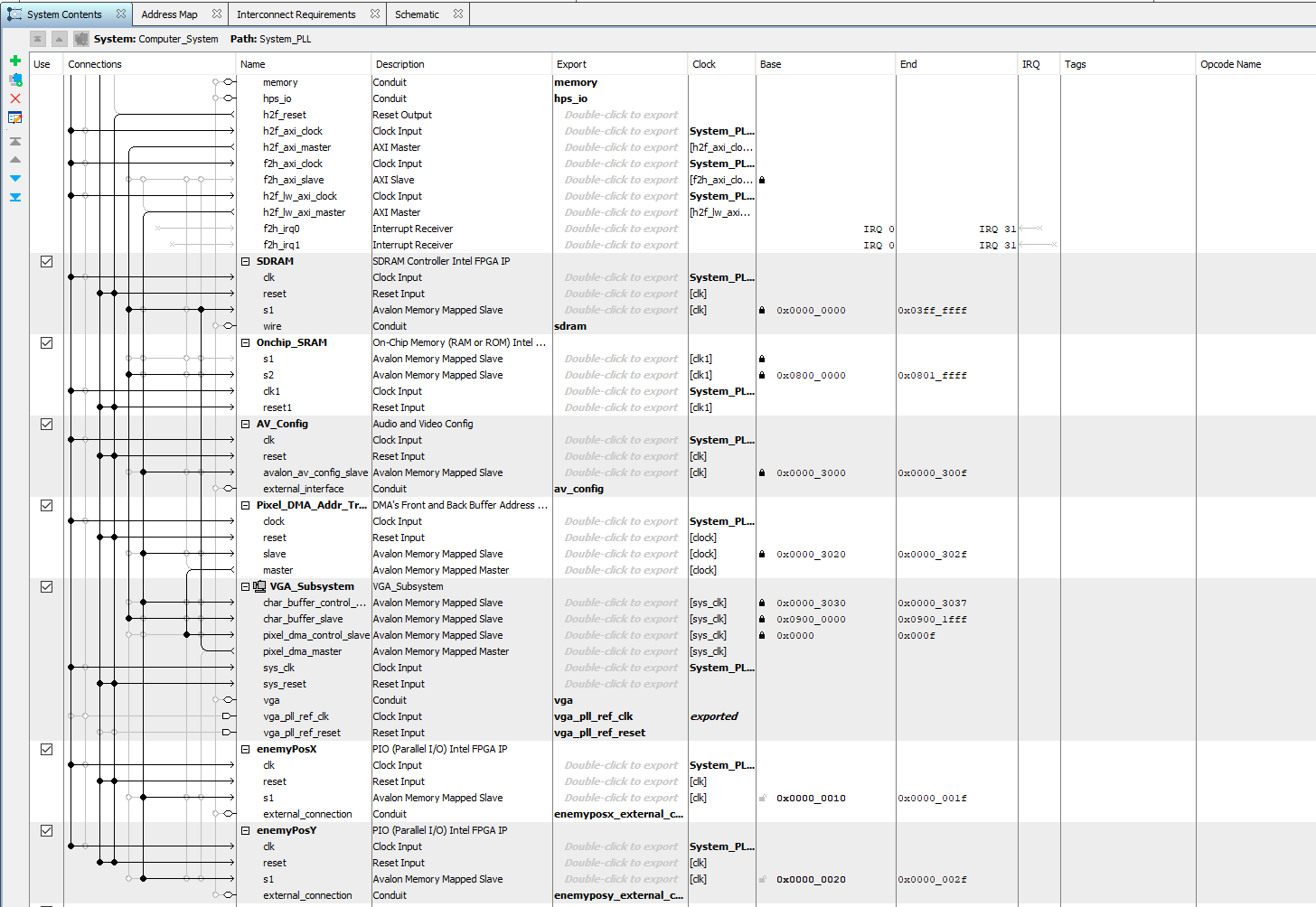

Figure 5. Qsys Layout
HPS Design for Space Shooter
The onboard HPS (Hard Processor System) in the "Space Shooter" project serves as the central interface for the user, enabling a range of interactions and controls that enhance the gameplay experience. Through the HPS, users can perform various actions such as:
- Move the Player's Spaceship
- Fire Bullets
- Start and Stop the Game
- Reset the Game
- Display and Update Scores
- Track and Display Time Elapsed
While the user cannot directly manipulate the game's internal logic or rendering process, the HPS provides a robust interface through various GPIO ports and memory-mapped I/O regions, allowing for seamless interaction with the game mechanics and hardware.
User Interactions
The HPS facilitates several critical user interactions, making the game both dynamic and responsive:
Player Movement
Users can control the movement of the player's spaceship using keyboard inputs. The HPS processes these inputs in real-time, updating the spaceship's position on the VGA display instantly. The controls include:
- Left (A Key)
- Right (D Key)
- Up (W Key)
- Down (S Key)
Firing Bullets
Pressing the 'F' key allows the player to fire bullets. The HPS handles the detection of this key press and initiates the bullet firing process, updating the bullet's position and state.
Game Controls
Additional controls provided by the HPS include starting, stopping, and resetting the game. These controls ensure that the player can manage the game state effectively, providing a user-friendly interface for gameplay management.
Initialization and Game State Management
A significant function of the HPS is to initialize the game and manage its state throughout the gameplay. This involves setting up initial positions, scores, and other game parameters, ensuring the game starts in a well-defined state.
Initialization Protocol
The initialization process is crucial for setting up the game environment. This involves configuring the VGA display, initializing player and enemy positions, and setting initial game parameters such as score and time.
Memory Mapping
Memory-mapped I/O is used extensively to facilitate communication between the HPS and FPGA. This allows the HPS to read and write directly to hardware components, such as the VGA display and enemy position registers, using standard memory instructions.
Communication Protocol
The communication between the HPS and FPGA is handled through a well-defined protocol, ensuring smooth and efficient data exchange. This protocol allows the HPS to manage game state updates, such as player movements and bullet firing, in real-time.
Player and Enemy Position Updates

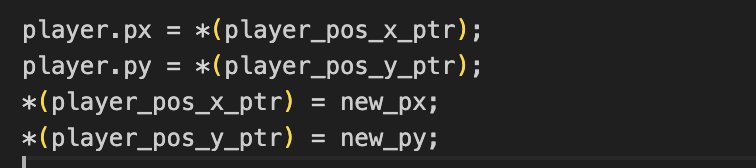

The HPS reads the current positions of the player and enemies from memory-mapped registers and updates them based on user inputs and game logic. This involves:
- Reading current positions
- Calculating new positions
- Writing updated positions back to memory
Handling User Inputs
A dedicated thread is used to handle user inputs, ensuring that the main game loop runs uninterrupted. This thread reads keyboard inputs in non-canonical mode, allowing for immediate response to user actions.
VGA Display Management
The HPS manages the VGA display, ensuring that all game objects are rendered correctly and in real-time. This involves setting pixel values, drawing shapes, and updating the screen with the latest game state.

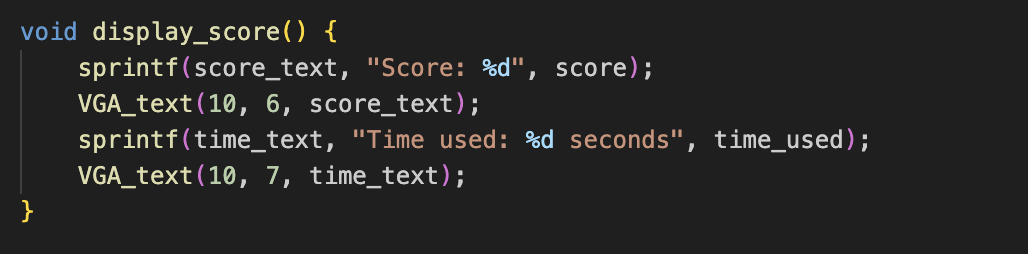

Score and Time Tracking
The HPS also tracks the player's score and the time elapsed since the game started. This information is displayed on the VGA screen, providing real-time feedback to the player.
Results & Testing
Results
To validate the functionality and performance of the "Space Shooter" project, we documented various aspects of the system's behavior and collected performance metrics. While photos alone cannot fully convey the effectiveness of our implementation, we have included key images to illustrate specific results. The demo video is present in the demonstration section of the page.
Game Demonstration

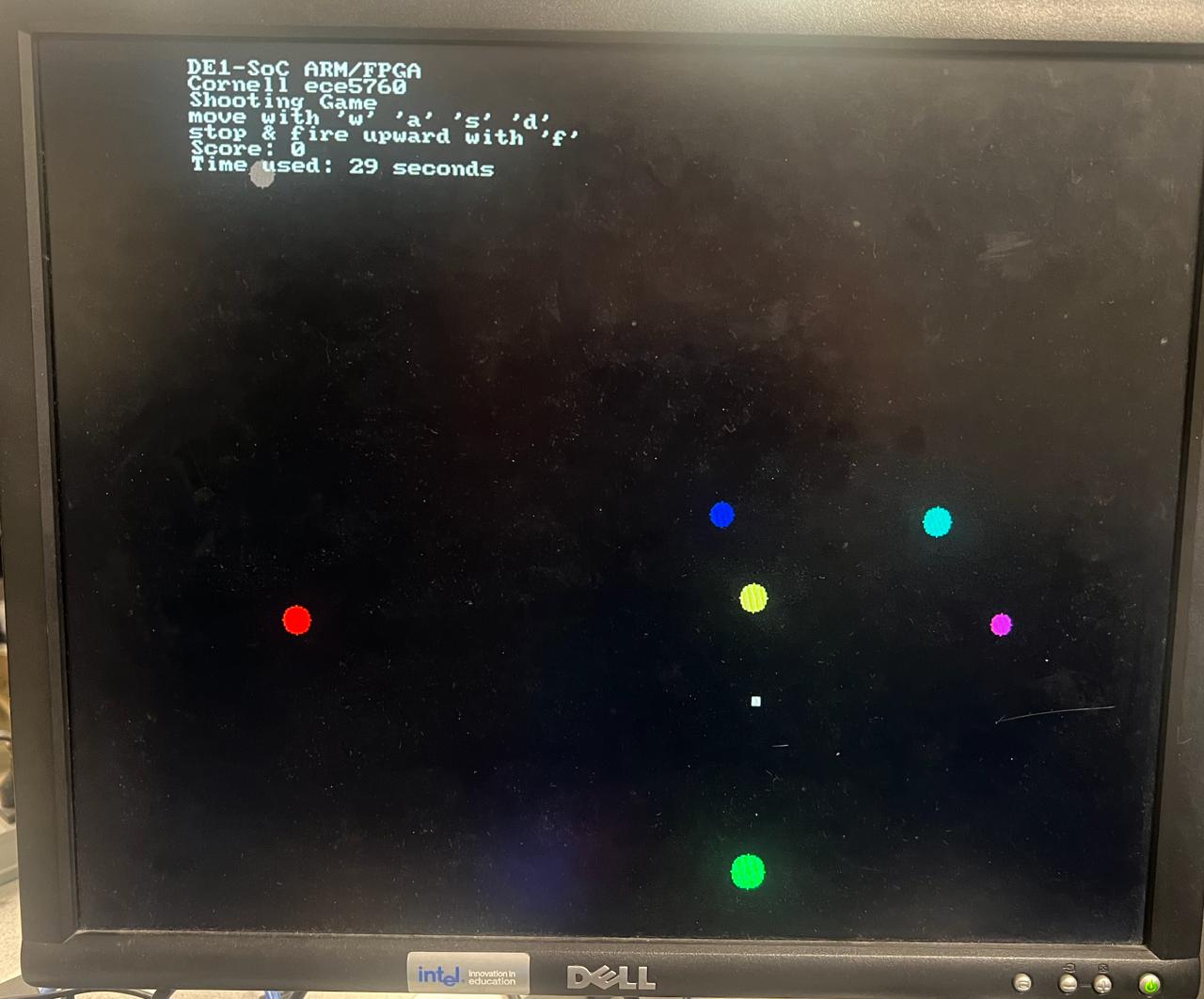

The video and accompanying images demonstrate key features of the game, including:
- Real-time player movement and control
- Bullet firing and collision detection
- Enemy movement and interactions
- Score and time tracking

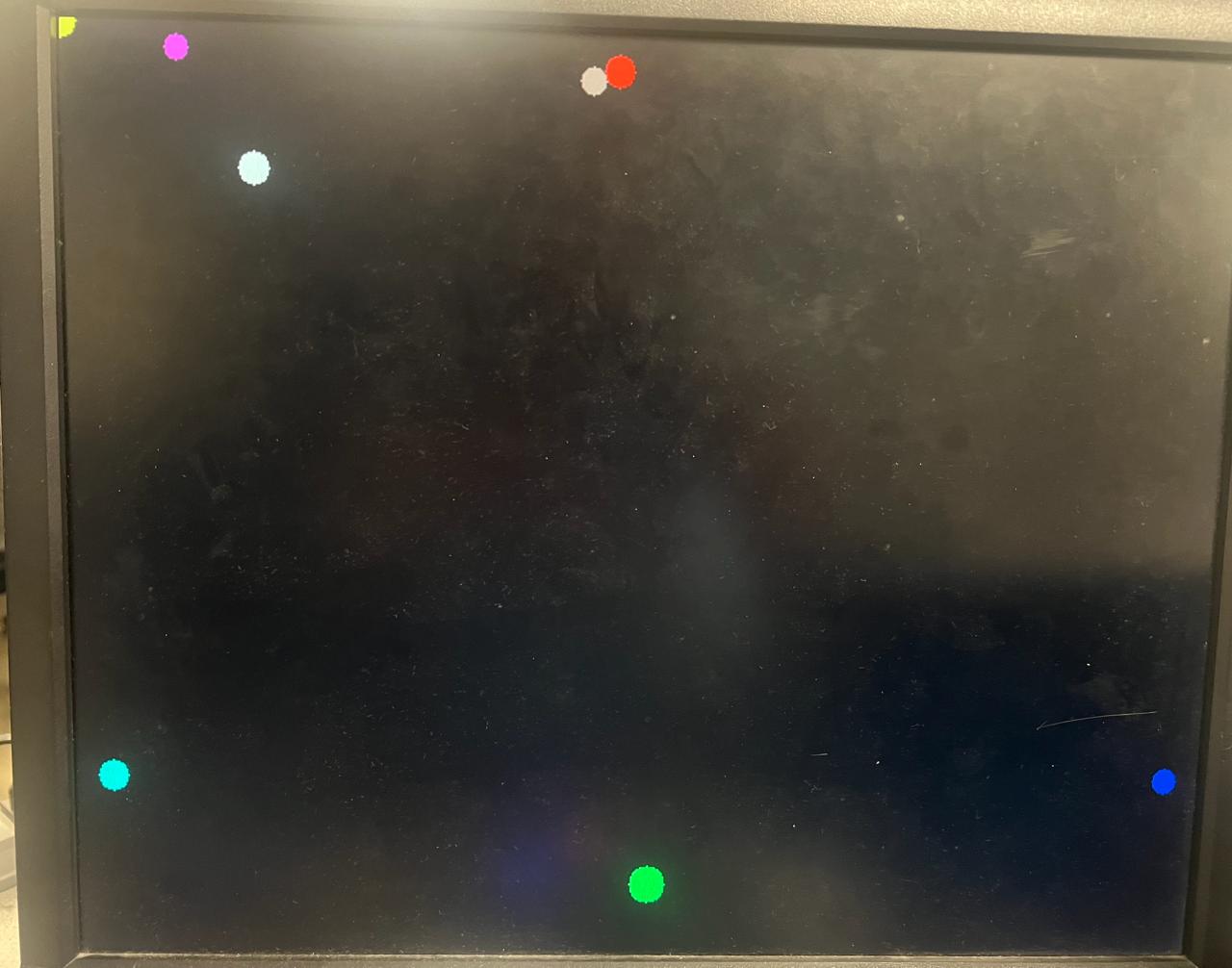

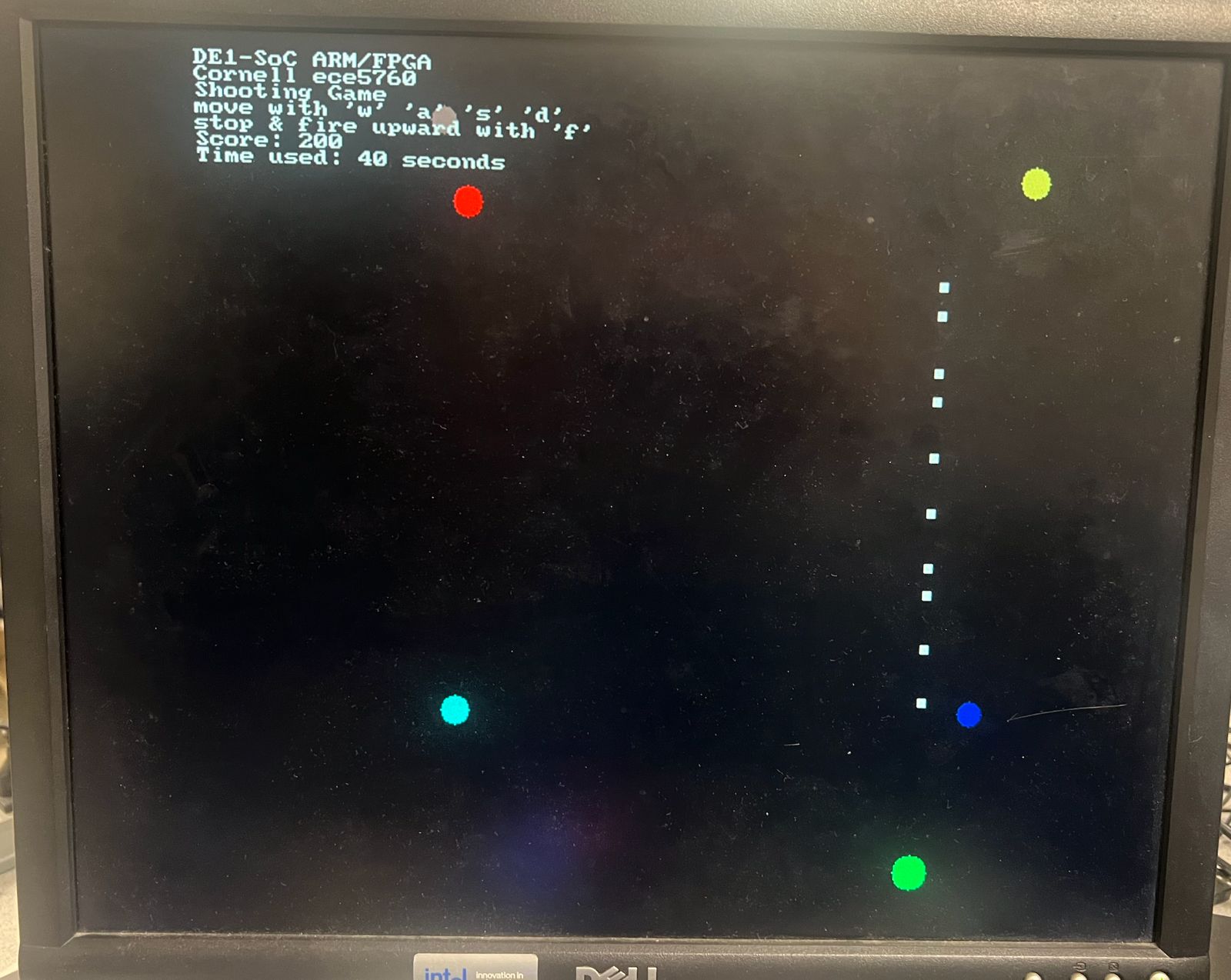

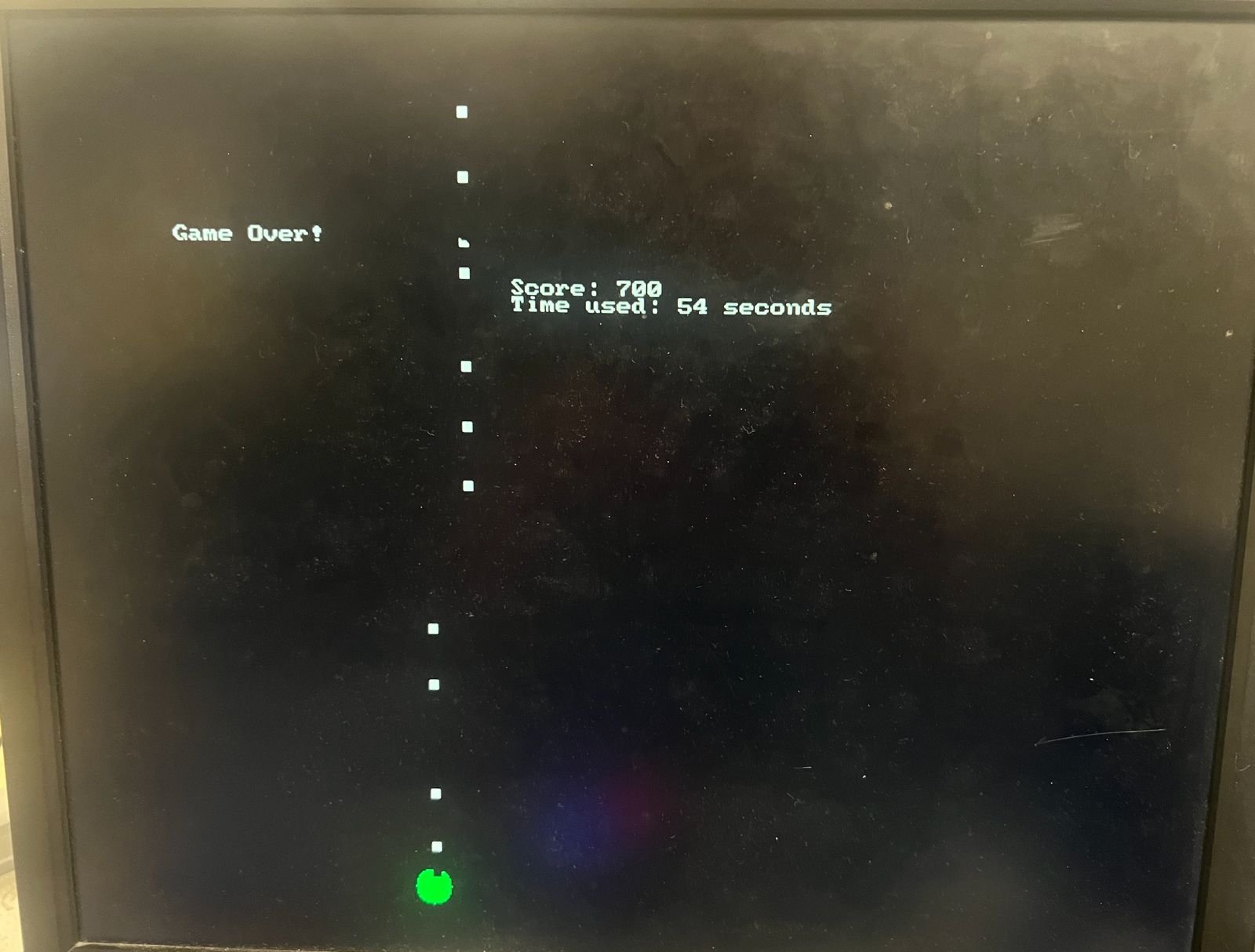

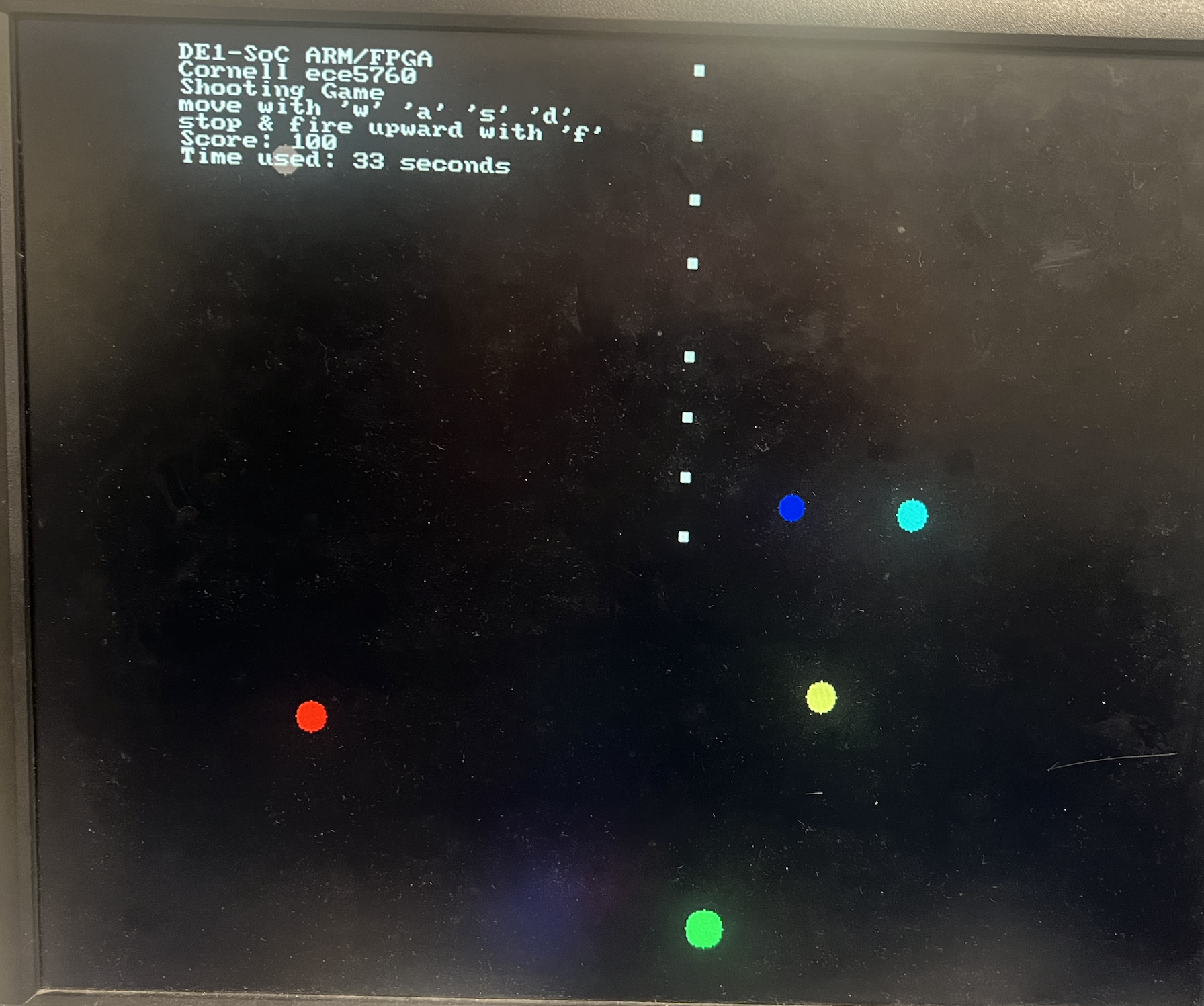

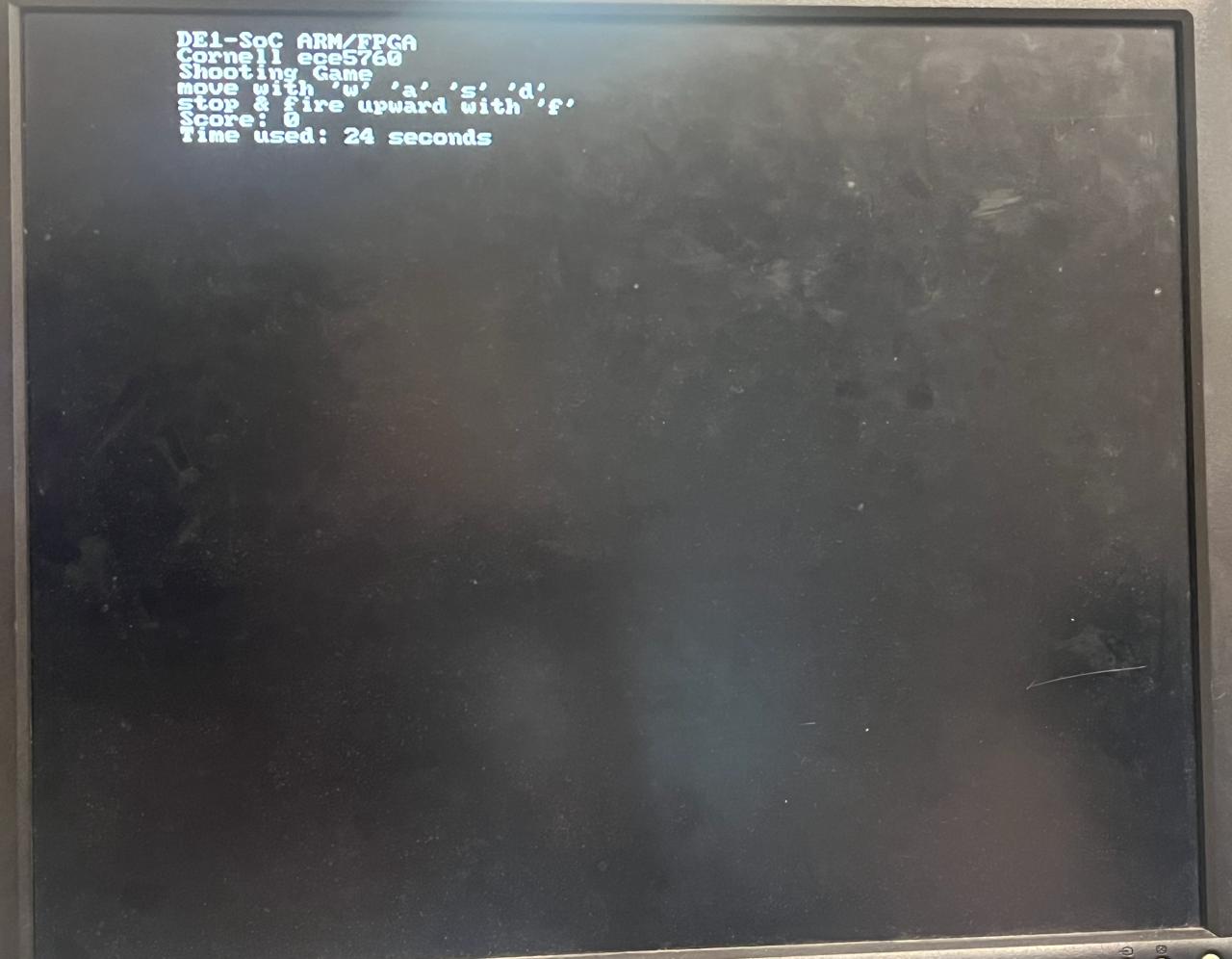

Figure 6. Development of the Game
Performance Metrics

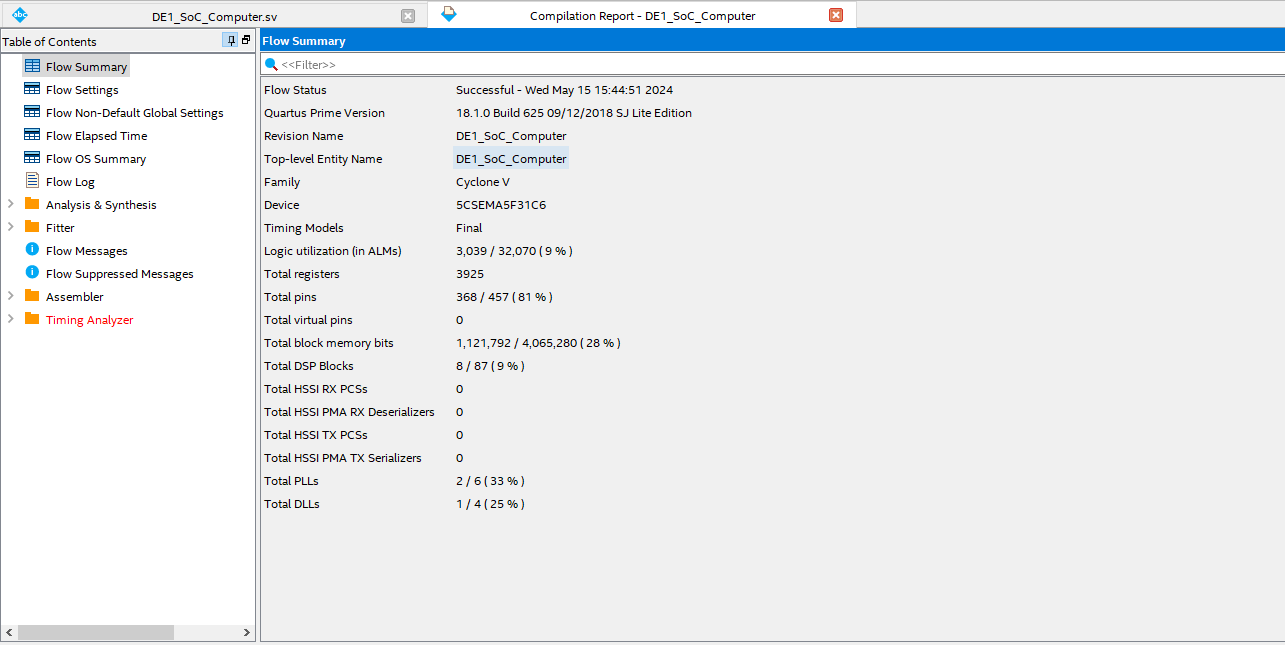

Figure 7. Compilation Report
Testing
To ensure the correctness and robustness of our design, we employed a rigorous testing methodology that included both simulation and hardware testing.

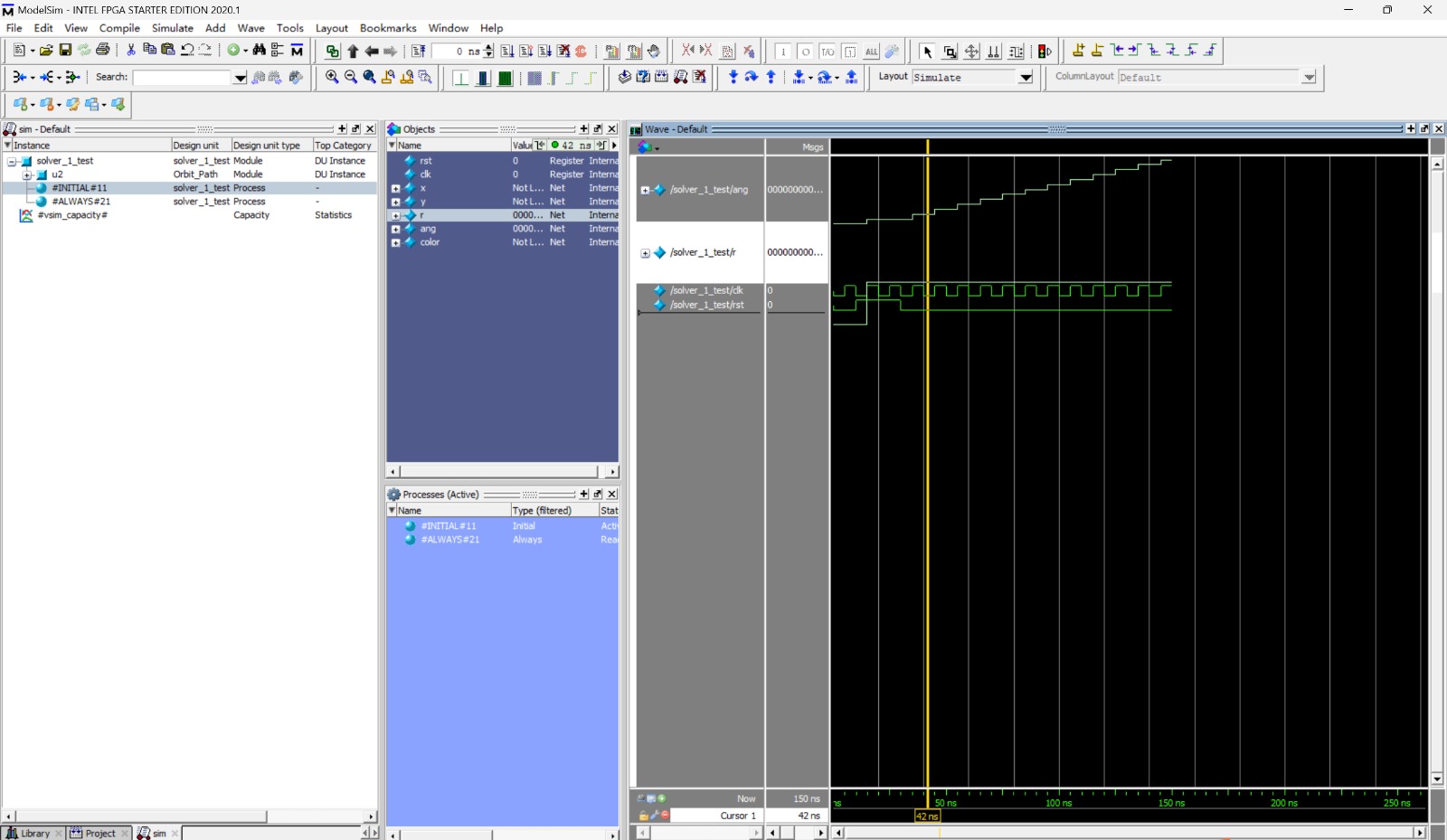

Unit Testing in ModelSim
We began by unit testing individual RTL modules in ModelSim, verifying their functionality in isolation before integrating them into the larger system. This approach helped identify and resolve issues early in the development process. Specific tests included:
- Player Movement Module: Simulated to ensure correct updates to player coordinates based on input signals.
- Bullet Firing and Movement Module: Verified that bullets were initialized, moved, and deactivated correctly.
- Collision Detection Module: Ensured accurate detection and response to collisions between bullets and enemies.
Figure 8. Gravity Motion Solver in Polar Coordinates
Integration Testing
Once individual modules were verified, we integrated them into the complete game system and simulated the entire design in ModelSim. This step included:
- Full Game Simulation: Verified that player inputs, enemy movements, bullet firing, and collision detection worked together seamlessly.
- Score and Time Tracking: Ensured that the game correctly updated and displayed the player's score and elapsed time.
FPGA Implementation and Testing
After successful simulations, we transferred the Verilog code to the FPGA and conducted extensive hardware testing. Using the SignalTap feature in Quartus, we monitored internal signals to debug and optimize the design. Key testing steps included:
- Real-Time Gameplay: Played the game on the FPGA, observing the system's responsiveness and performance.
- Audio Feedback: Listened for expected audio cues, such as bullet firing and collision sounds, to verify correct game behavior.
- Error Detection: Identified issues through audio or visual anomalies (e.g., static, missing sounds) and resolved them using SignalTap for detailed signal analysis.
Experimentation and Challenges
During the development of the "Space Shooter" project, we encountered several challenges that required creative problem-solving and adaptation. This section outlines the key complications we faced and the approaches we took to address them.
Implementing Gravitational Motion
One of the initial goals of our project was to incorporate realistic gravitational motion for game objects, such as the player's spaceship and bullets. We successfully implemented this feature in MATLAB, where the physics calculations could be handled more straightforwardly. However, translating these complex behaviors to Verilog and running them on the FPGA proved to be a significant challenge. The primary issues included:
- Fixed-Point Arithmetic: Handling the precision required for realistic gravity calculations was difficult with fixed-point arithmetic, which is more limited than floating-point arithmetic used in MATLAB.
- Real-Time Physics Calculations: Implementing real-time physics calculations on the FPGA while maintaining smooth gameplay required significant computational resources and optimized algorithms, which were beyond our current implementation capabilities.

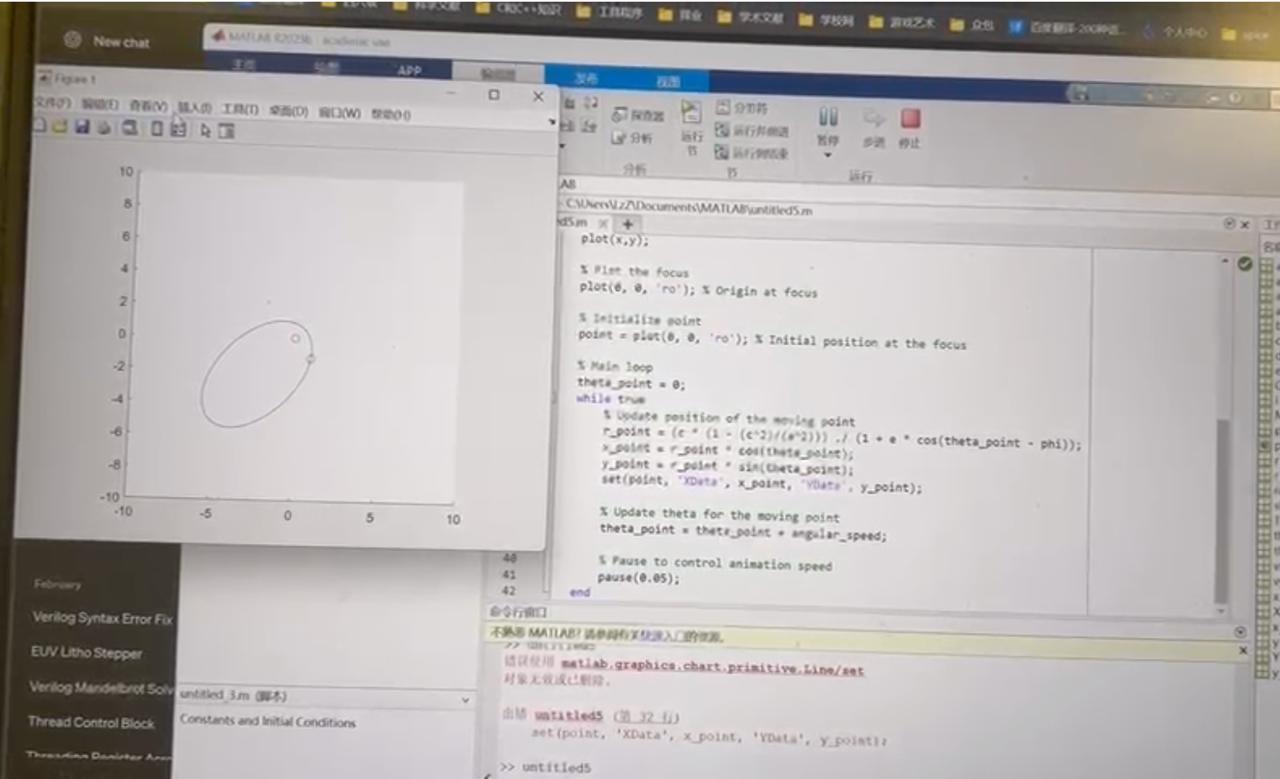

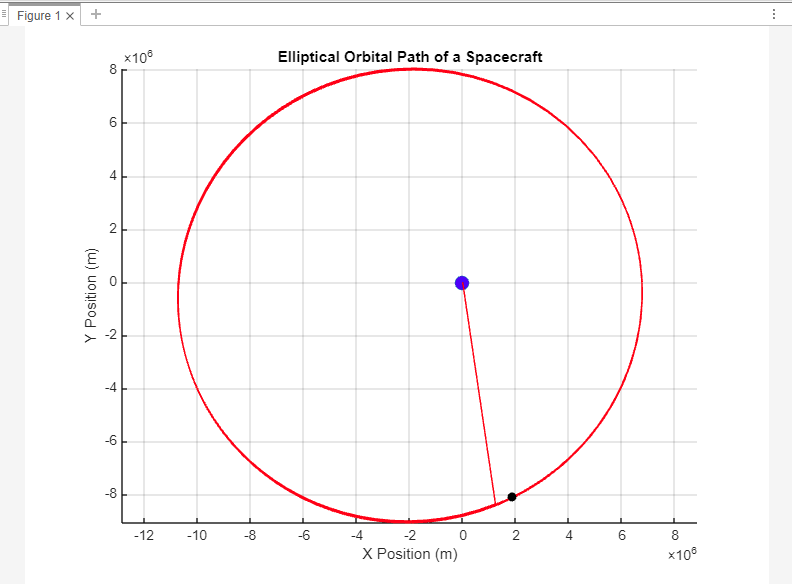

Figure 9. MATLAB Implementation.
Exploring Different Game Ideas
Throughout the project, we explored various game concepts to find the most suitable one for FPGA implementation. This exploration included:
- Platformer Game: We initially considered developing a platformer game with gravity and jumping mechanics. However, the complexity of real-time collision detection and physics simulation in a platformer environment made it less feasible for our FPGA setup.
- Puzzle Game: A puzzle game involving logical state management was another idea we considered. While it was simpler to implement, it lacked the dynamic and interactive elements we aimed for in our project.
Hardware and Timing Constraints
Another significant challenge was managing hardware and timing constraints inherent to FPGA development. Specific issues included:
- Resource Limitations: The FPGA has limited DSP blocks and memory resources, which required careful optimization of our Verilog code to fit within these constraints.
- Timing Issues: Ensuring that all operations, including rendering, input processing, and game logic updates, occurred within the tight timing requirements of the FPGA was a constant challenge. We used SignalTap and other debugging tools extensively to identify and resolve timing violations.
Lessons Learned
Through these challenges, we gained valuable insights and experience in FPGA development, particularly in the areas of:
- Optimization: We learned how to optimize our Verilog code for performance and resource usage, balancing the trade-offs between complexity and feasibility.
- Debugging: The use of SignalTap and other debugging tools was crucial in identifying and resolving issues, highlighting the importance of thorough testing and validation in hardware development.
- Adaptability: Flexibility in our approach allowed us to pivot from more complex game ideas to a more manageable and engaging project, demonstrating the importance of adaptability in project development.
Conclusion
The "Space Shooter" project has been a comprehensive and enriching endeavor, blending elements of hardware design, software development, and real-time system integration. Through the use of FPGA and HPS, we successfully created a responsive and interactive game that highlights the capabilities of parallel processing and memory-mapped I/O. Despite facing challenges such as implementing gravitational motion and managing hardware constraints, we adapted our approach to focus on achievable and engaging game mechanics. This project not only demonstrates the practical application of theoretical concepts but also underscores the importance of flexibility and problem-solving in engineering. The final product, supported by rigorous testing and optimization, showcases our ability to deliver a robust and enjoyable gaming experience.
Demonstration Video
References
[1] Quartus 18.1 Webpage [Online]. Available: https://people.ece.cornell.edu/land/courses/ece5760/DE1_SOC/HPS_peripherials/Examples_version_18.html
[2] VGA Graphics [Online]. Available: https://people.ece.cornell.edu/land/courses/ece5760/DE1_SOC/HPS_peripherials/univ_pgm_computer.index.html
[3] De1-SoC board Datasheet [Online]. Available: https://www.terasic.com.tw/cgi-bin/page/archive.pl?Language=English&CategoryNo=167&No=836
[4] Physics Simulation [Online]. Available: http://mw.concord.org/modeler/?gad_source=1&gclid=Cj0KCQjwgJyyBhCGARIsAK8LVLNm1rU12j-7_3ywOgdvYhqIBCkFwXqeGUJzpXynFjign6uH8Gj6dO0aAu4oEALw_wcB
Appendix A
The group approves this report for inclusion on the course website.
The group approves the video for inclusion on the course YouTube channel.
Appendix B
This appendix contains the Verilog source codes and other necessary files we used in this project.
The top-level module: space_shooter.v
C code: space_shooter.c
