The final result was a Mandelbrot Set visualizer that was significantly more usable than our lab3 implementation. Not only was computation made faster with a new VGA driver and optimized resource usage allowing for 40 parallel iterators, but zooming was made much more intuitive with fractional zooming. Our demo video shows the course instructors using our visualizer for the first time and reacting favorably towards the smoothness of the zooming. Below Table 1 compares the results of our improved solver to the results from lab 3 on the entire Mandelbrot set. It can be seen that our optimized implementation beats our best lab 3 result (203 ms) by nearly 7x. Getting a 2x improvement is easy to get by adding the 100MHz PLL, but further performance improvements took careful thought.
| Solve Time | |
|---|---|
| HPS | 962 ms |
| Improved with 40 iterators | 30 ms |
| 16 iterators | 203 ms |
| 8 iterators | 399 ms |
| 4 iterators | 796 ms |
| 2 iterators | 1592 ms |
| 1 iterators | 3185 ms |
Table 1: Comparison of compute time between the HPS and various numbers of FPGA iterators for the entire Mandelbrot set. The optimized version developed in this lab is in red.
Table 2 shows a comparison of the computation time of certain regions specified in the lab 3 handout. As expected, the improved design significantly outperforms the other implementations. The relative speedup for the entire set (x = [-2, 1], y = [-1, 1]) is greater than in the other locations because the bounding box optimization is not applicable to those regions. Nonetheless, the speedup is greater than 2x for each location in the improved design. This indicates that the optimizations we added are improving performance, in addition to the 2x PLL increase.
| Iterators | x = [-2, 1], y = [-1, 1] | x = [-0.758, -0.75], y = [0.05, 0.06] | x = [-1.45, -1.3], y = [-0.07, 0.07] |
|---|---|---|---|
| 40 | 30 ms | 95 ms | 111 ms |
| 16 | 203 ms | 375 ms | 382 ms |
| 8 | 399 ms | 786 ms | 772 ms |
| 4 | 796 ms | 1572 ms | 1496 ms |
| 2 | 1592 ms | 2870 ms | 3072 ms |
| 1 | 3185 ms | 5929 ms | 6106 ms |
Table 2: Comparison of compute times of different regions for varying numbers of iterators. The red row is the improved design developed for this project.
A big part of optimization involves optimally utilizing the resources available on the FPGA. Figure 1 shows a comparison of the resources used in the previous lab’s 16 iterator implementation and the utilization of the improved design. Looking at the first metric, logic utilization, we nearly maxed out utilization with the optimized design, going from 29% utilization to 94%. The inflation in logic utilization is mainly due to going from 16 to 40 iterators. Logic was also utilized for the the updated VGA driver which was able to read from 40 separate M10K banks of memory, but this replaced the previous logic of the round robin arbiter. Next, it can be seen that memory utilization went down a bit. This decrease is mainly due to us not calculating the entire coordinate mapping for each iterator. This was leading to a lot of inefficiently used memory, which would only increase as the number of iterators grew. The VGA subsystem’s memory buffer also took up a large portion of the memory, but that was replaced by the 40 M10K banks of memory that the iterators wrote to and the VGA driver read from. Finally, while DSP utilization looks to be about the same, this is actually far from the reality. In lab 3, DSP utilization was maxed out at ~16 iterators, while we were able to push that value up to 40 iterators. The key here was optimizing our states such that at most two DSPs were being used in any one state. This allowed for multipliers to be reused between states, which allowed for each iterator to only use two DSPs. Overall the resource utilization was much better utilized, allowing us to squeeze out every bit of performance the FPGA has to offer. A clear difference can be seen visually in Figure 2 which shows the FPGA floorplan via the chip planner reports.

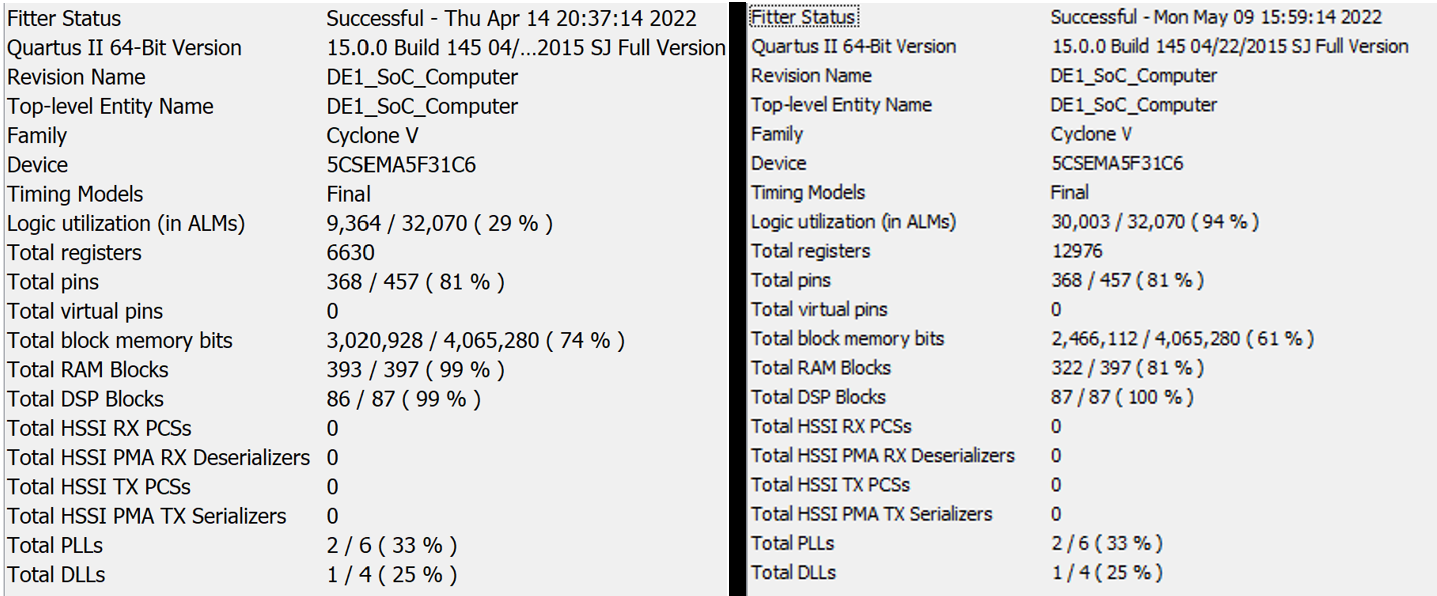

Figure 1: Compilation reports for 16 iterator design from lab 3 (left) and newly designed 40 iterator design (right)

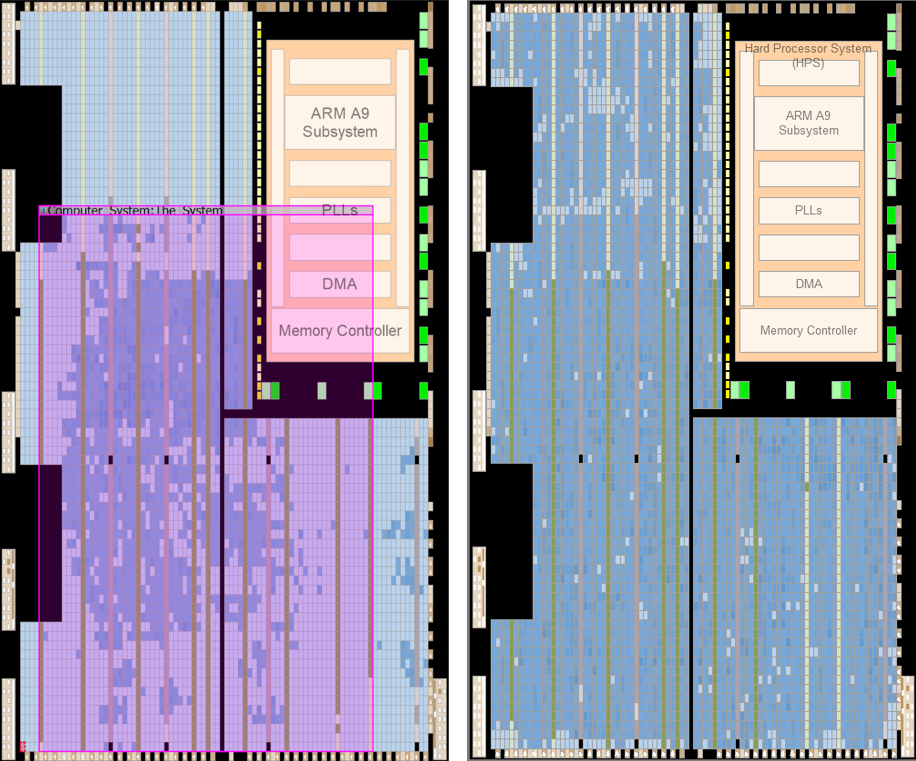

Figure 2: Chip planner of 16 iterator design (left) and 40 iterator design (right). There is an obvious difference between utilization
