Intro - Gesture Based User Interface

Introduction

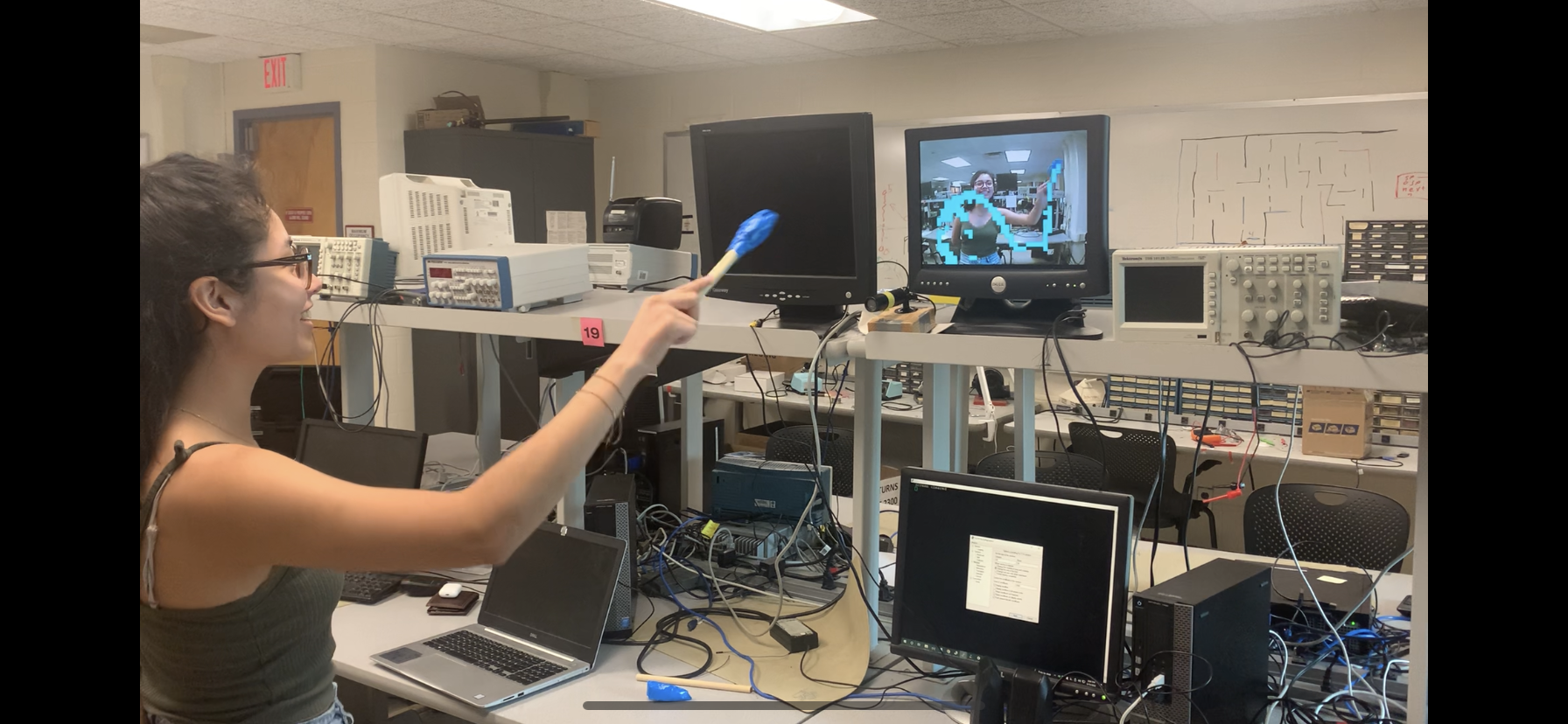

In this project we developed a gesture-based user interface that uses the NTSC camera to track a particular color. This allows a user to hold a wand (or anything of that color) to use as a real-time, touchless stylus. The video streaming and color detection algorithm was implemented in hardware on the provided DE1-SoC FPGA. To demonstrate the versatility of this project, we created three (and a half) mini-games that use this gesture-based user interface.

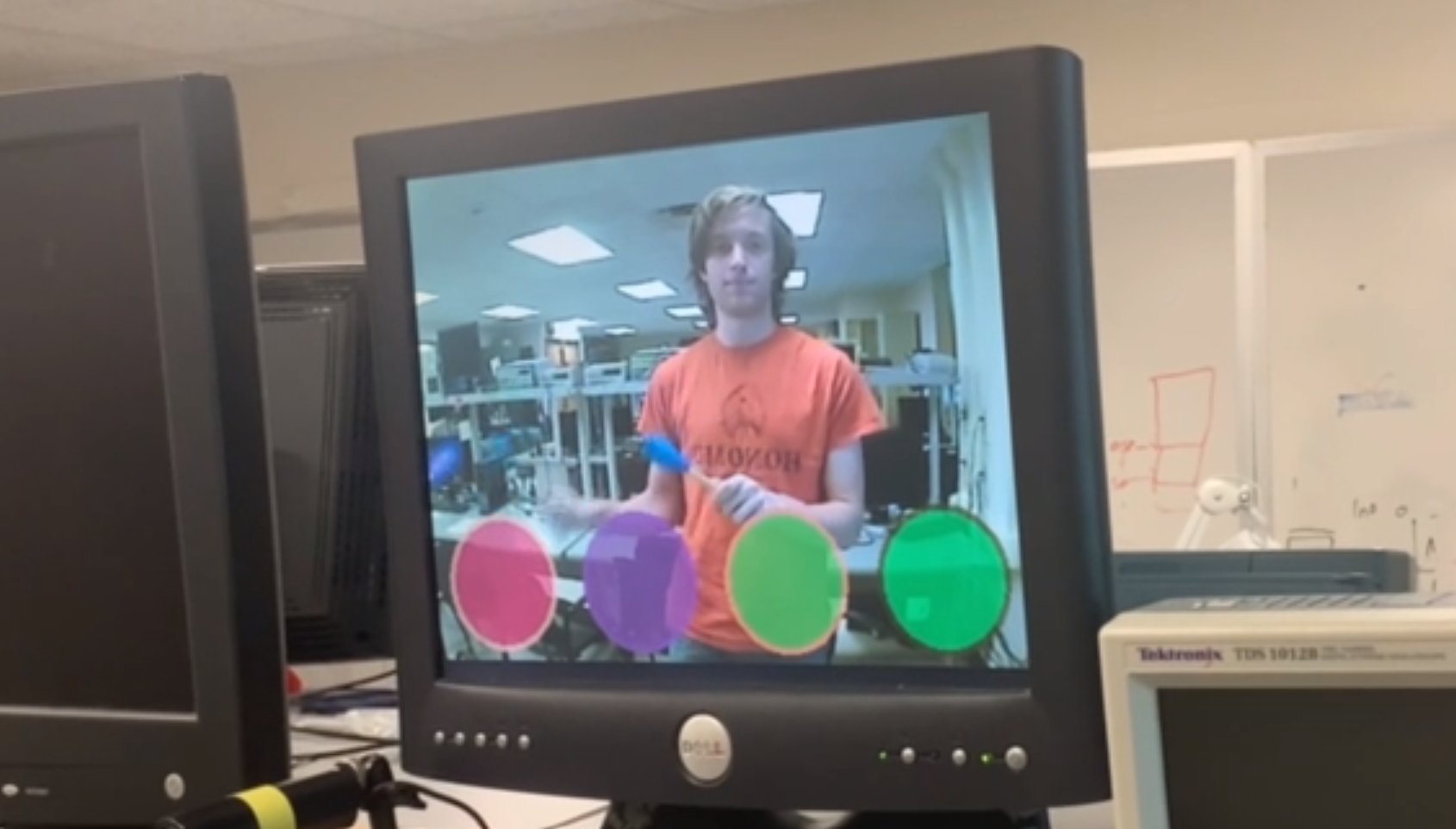

Drum Kit Demonstration

Our first mini-game was a hands-free drum kit. Using two "drumsticks" with a designated color on the end, the user would see four circles drawn on the VGA display, overlayed atop a mirrored video stream of themselves. They could "hit" the drums circles, and the system would play the corresponding drum sound. This drum game was programmed in C and ran on the HPS system, using the input from the image processing algorithm running on the FPGA. The C program then ran a calculation to see if the drumstick was within the bounds of the drum circle drawn on the screen.

Guitar Demonstration

The second mini-game was a hands-free guitar simulation. This worked the same as the drum kit, but loaded different sound files upon startup. This was to show how easily expandable this code was.

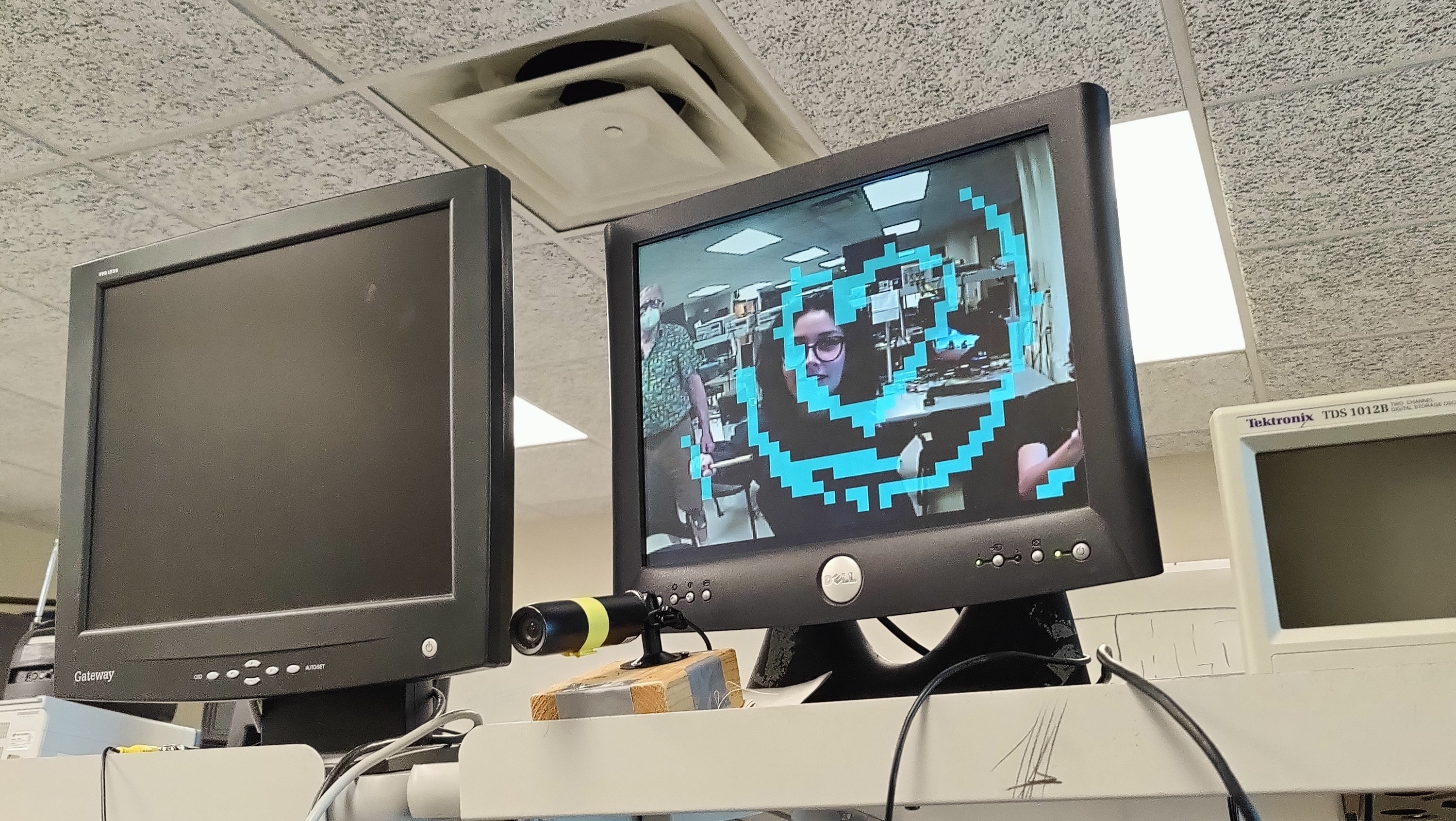

Etch-A-Sketch Demonstration

The third and final demo for this UI was an etch-a-sketch. Once we had accurate enough color detection, and a correctly configured connection between the HPS and VGA display, we could trace where the drumstick was and draw a filled rectangle at that location on the screen. We used a terminal input to clear the screen.
